The Table Editor application is used when creating and modifying Wintouch tables or "drop-down list boxes" available to the user in the Wintouch dialog screens and windows. Open the Table Editor window by selecting Administration from the Main Desktop then Table Editor from the pull-down menu.

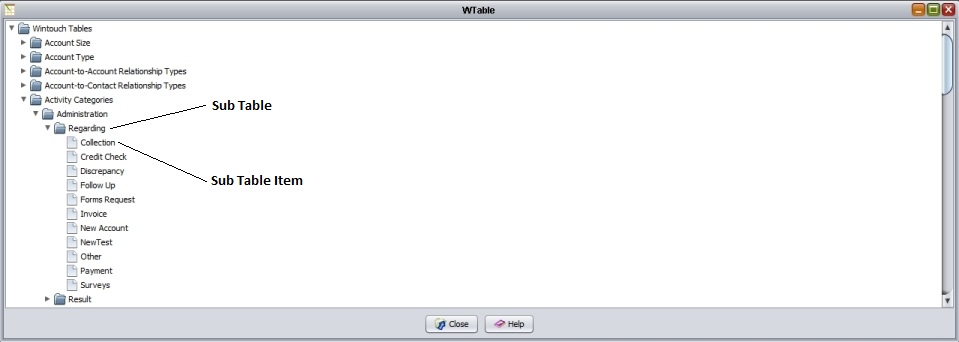

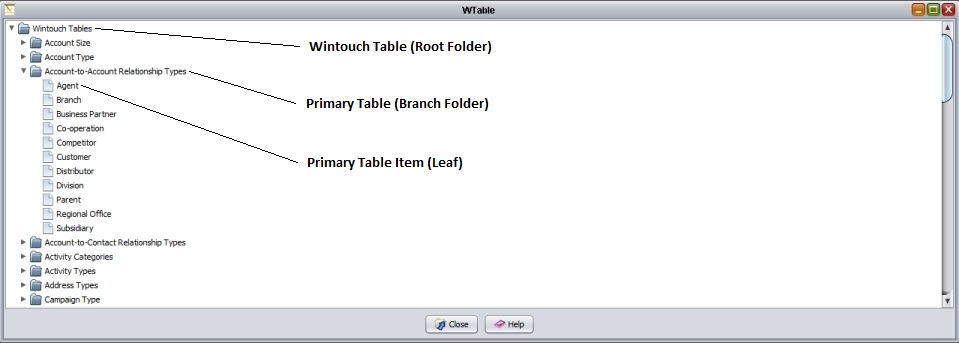

The Editor "Tree" is similar to Microsoft's Window Explorer; a Root Folder (Wintouch Tables), the Branch Folders (Wintouch Primary Table Names), and Leaves (Wintouch Primary Table Items) make up the navigation scheme. The Table Editor window displays all existing tables and will allow you to add, update, or delete a table.

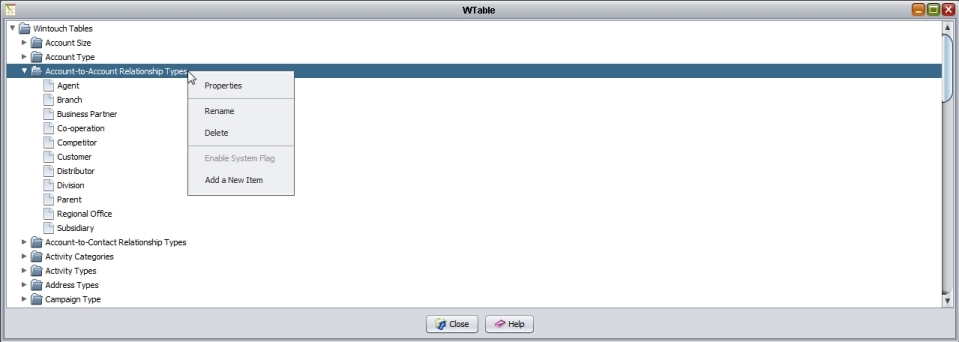

Right-click on a highlighted Branch (A Wintouch Primary Table) for a list of menu options.
Right Click Options
Properties: See help on table properties Table Editor Table Properties.
Rename: This enables edit mode to change the table name.
Delete: Deletes the highlighted table after the dialog message "Are you sure you want to delete?"
Note: A system table cannot be deleted.
System Flag
Enable System Flag: Sets the flag on the highlighted Wintouch system table after the dialog message "Are you sure you want to enable system flag?"
Add a New Item: See help on adding a new table item Table Editor Add New Item.

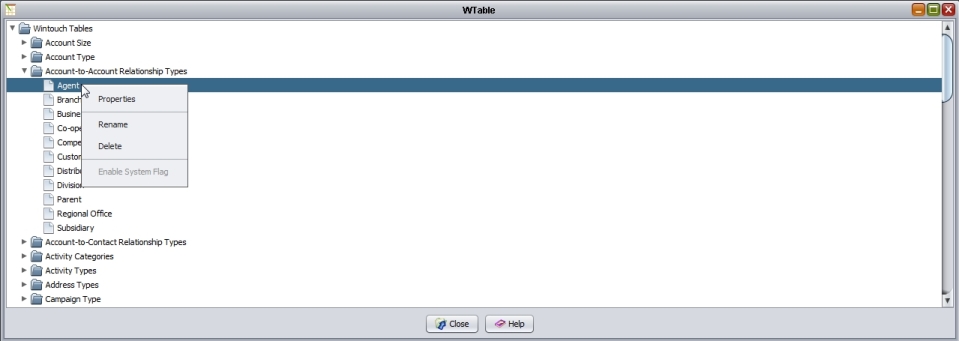

Right-click on a highlighted Leaf (A Wintouch Primary Table Item) for a list of menu options.
Properties: See help on Item properties Table Editor Item Properties.
Rename: This enables edit mode to change the table item name.
Delete: Deletes the highlighted table item after the dialog message "Are you sure you want to delete?"
Enable System Flag: Sets the flag on the highlighted Wintouch system table item after the dialog message "Are you sure you want to Enable System Flag?"
Push Buttons
Close: Exits the Table Editor Window.
Help: Displays on-line help for the active window.
